Home / RIFLESCOPES / HD-S / HD-S 1.2-6X24

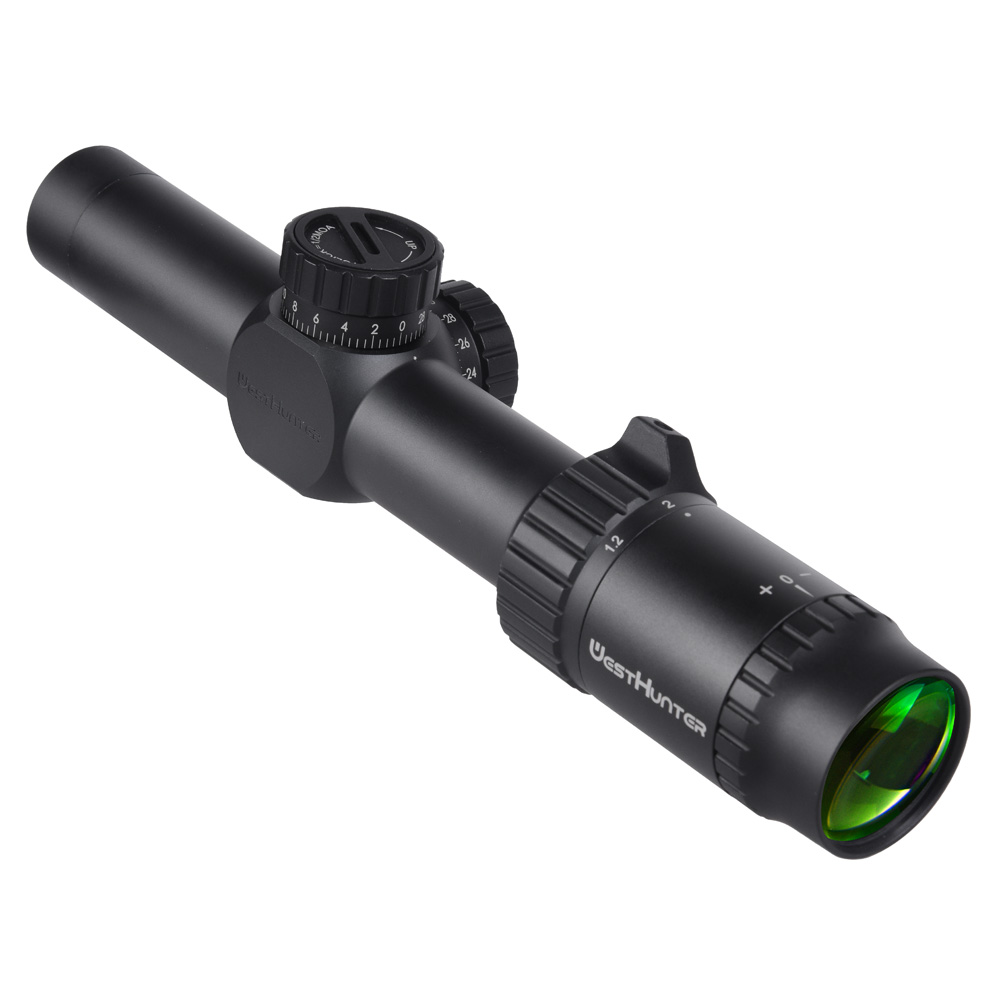

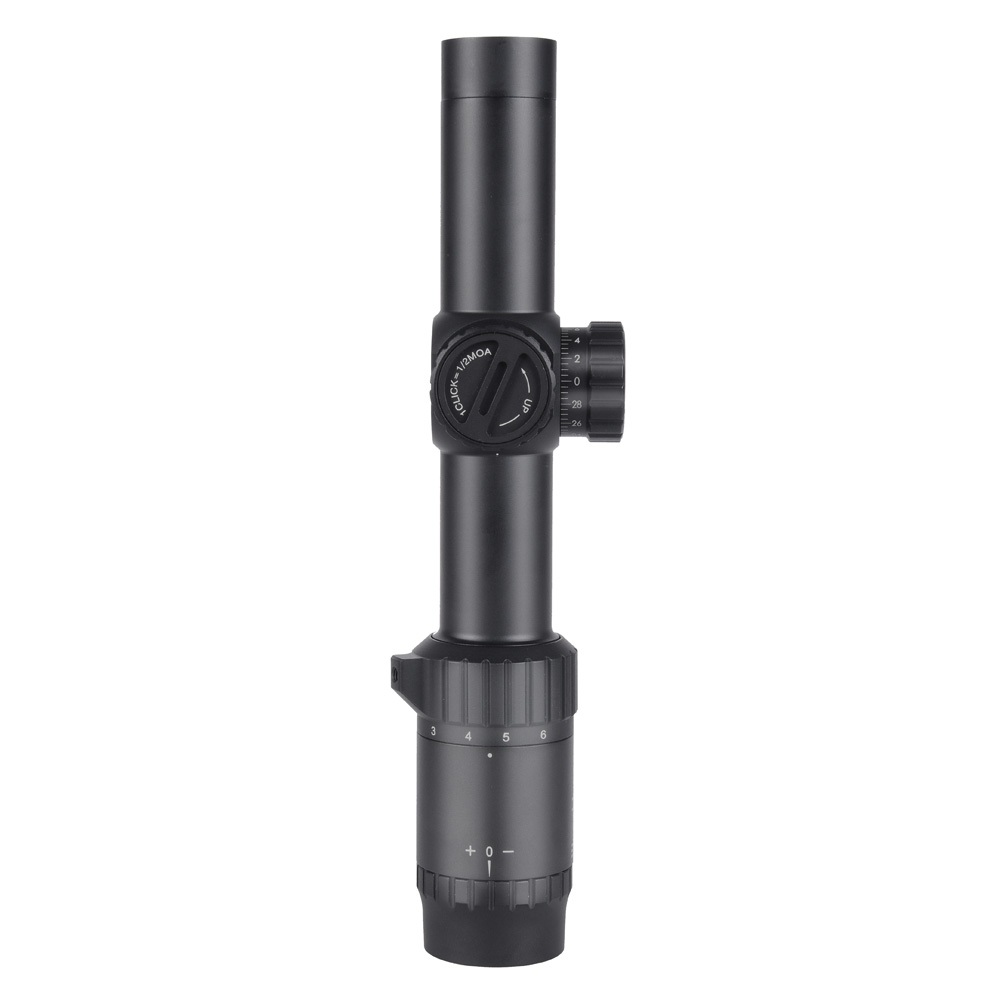

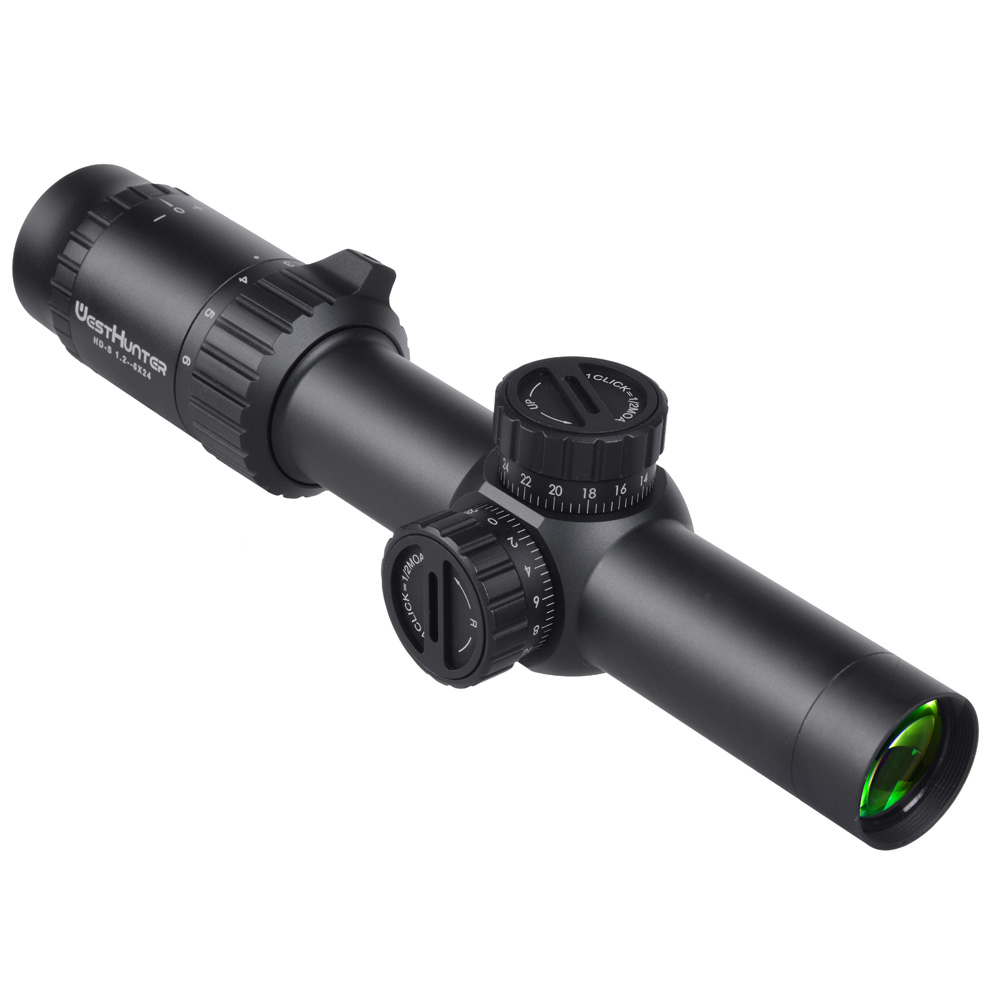

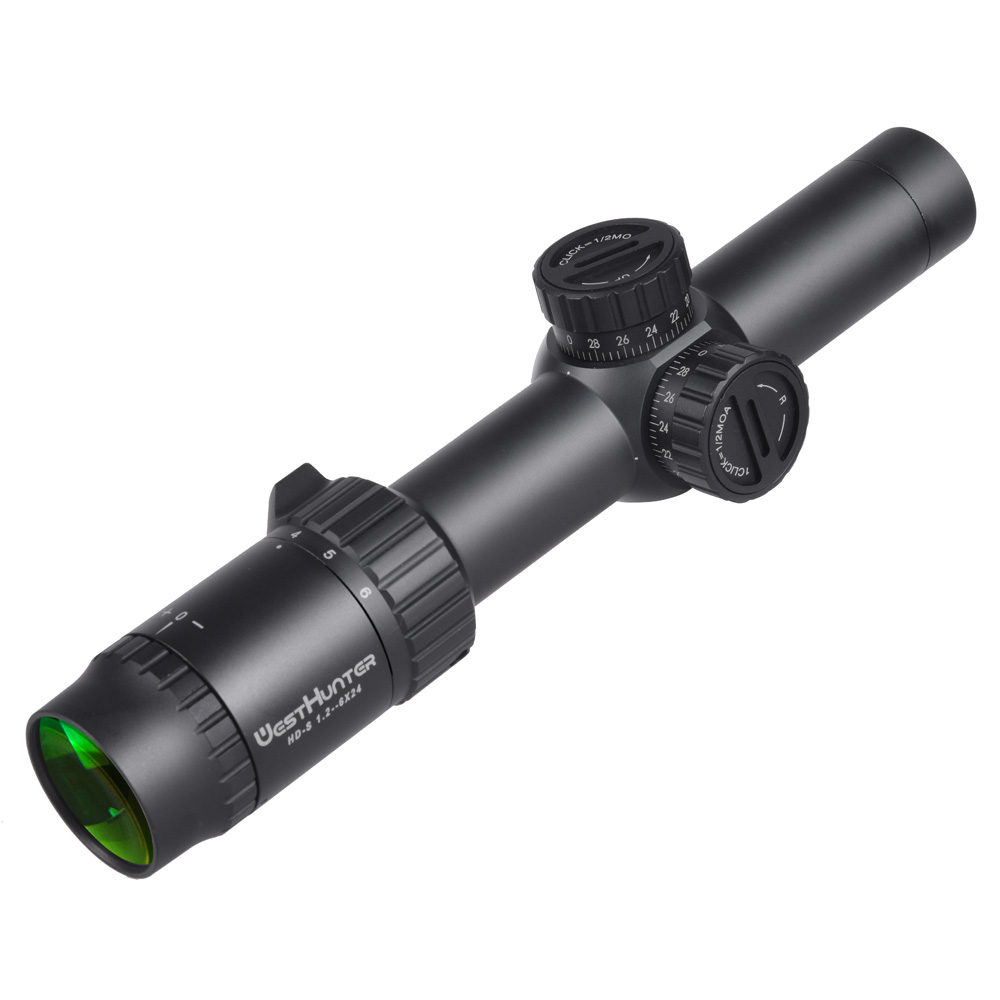

WESTHUNTER HD-S 1.2-6X24
send e-mail
dealer@westhunteroptics.com
leave massage
Feature
Specification

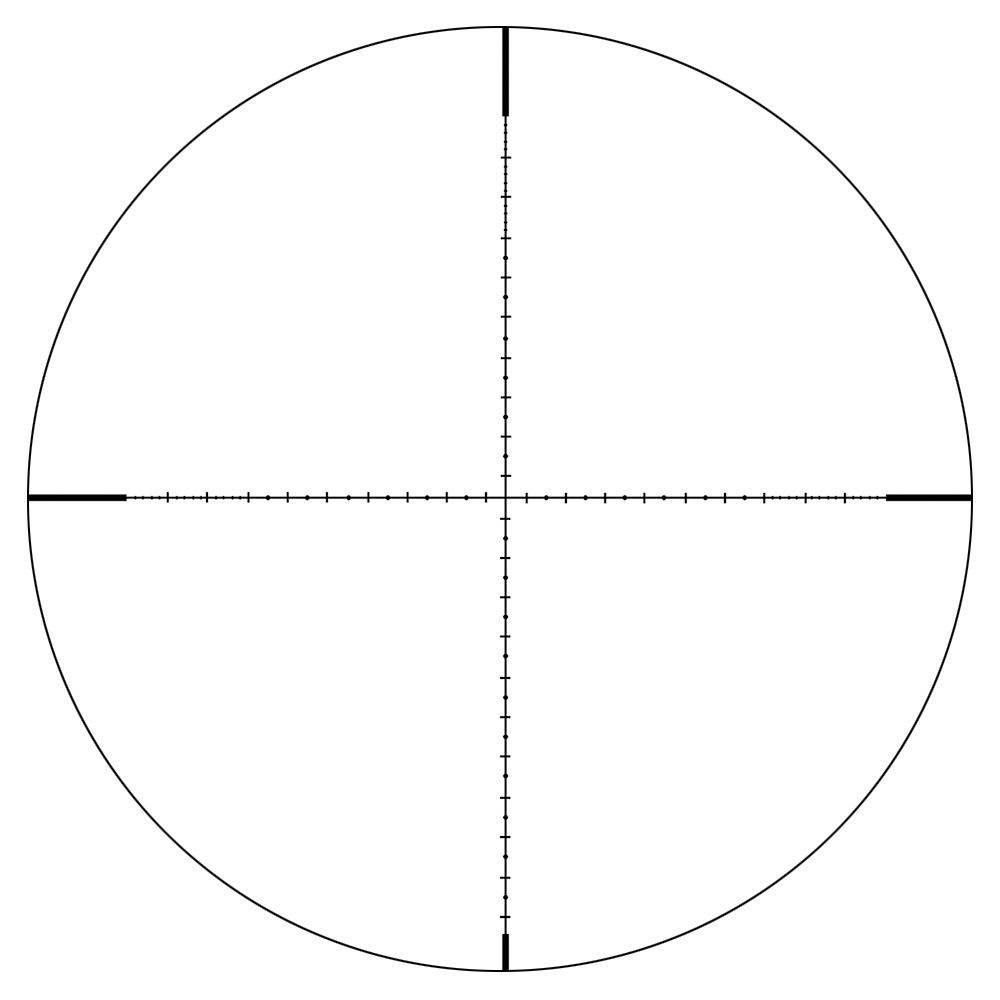

Reticle
Accessories
Magnification:
1.2-6
Length:
237mm/9.33oz
Weight:
395g/13.93oz
Objective diameter:
24
Diameter:
30
Eyepiece Field of view:
20
Diopter range:
+/- 2
Exit Pupil Distance (mm):
101.2
Standard Klick value for E/W (MIL):
1/2MOA
Total travel elevation (@ 100 yds):
≥ 120MOA
Total travel windage (@ 100 yds):
≥120MOA
Parallax Compensation:
100yds
Fast focus eyepiece:
yes
Sealing gas used:
Nitrogen
Clear aperture min magnification (mm):
16.0
Clear aperture max magnification (mm):
24
Eff. exit pupil diameter @ min. magnification ± 3 %:
13.33
Eff. exit pupil diameter @ max. magnification ± 3 %:
4.00
Maximum resolution in Arc. Second (min. Magnification):
11
Maximum resolution in Arc. Second (max. Magnification):
7
Range of Function temperature (Unit can still be operated):
-25°C/+55°C
Storage temperature:
-40C to +85C
Range of Dioptric compensation:
+/- dpt 2
Permissible backlash Dioptric Compensation:
<0.25dpt
objective field of view @ min magnification (ft @100yds):
91.0
objective field of view @ max magnification (ft@100yds):
18.2
Change of impact point after change of magnification (MOA):
1.5
Parallax of Reticle (minute):
<.3'
Centering Reticle, full Field of View:
± 7 %
Straightening of the Reticle:
± 2 °
