Home / RIFLESCOPES / HD-S / HD-S 4-16X44 SF

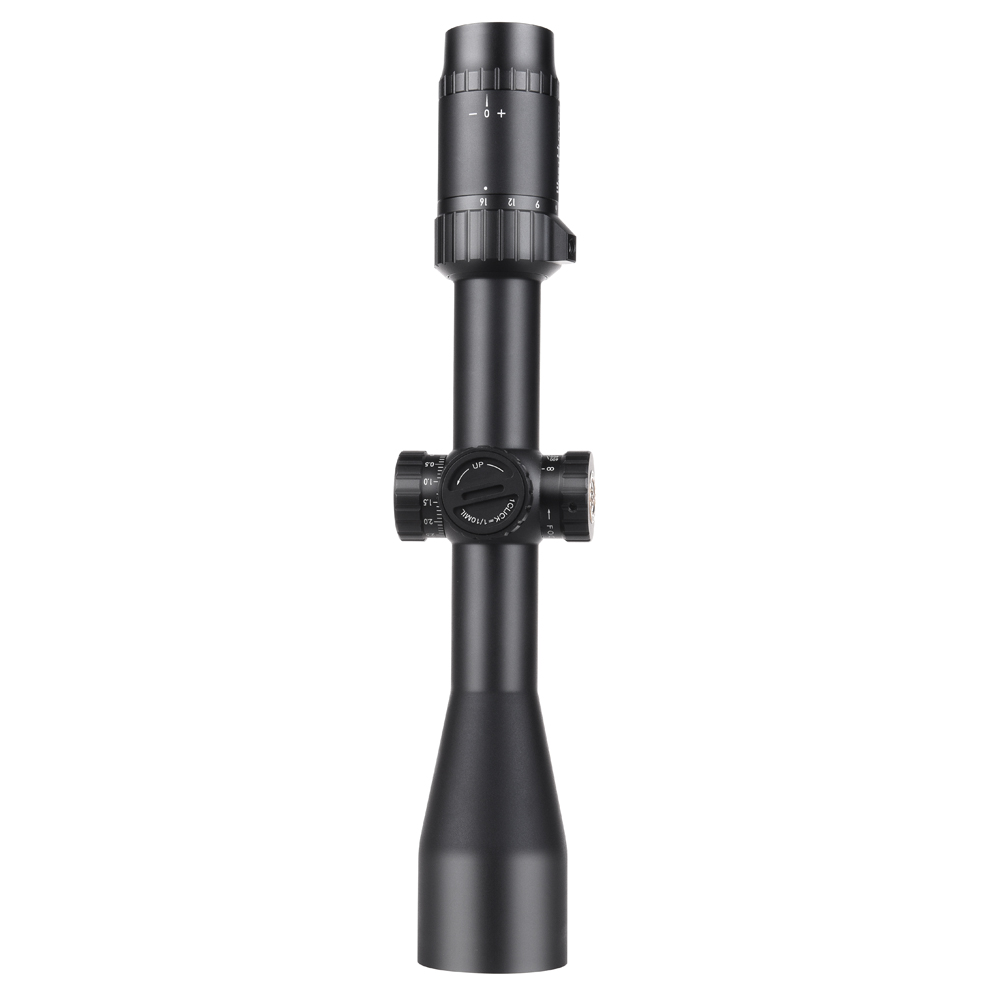

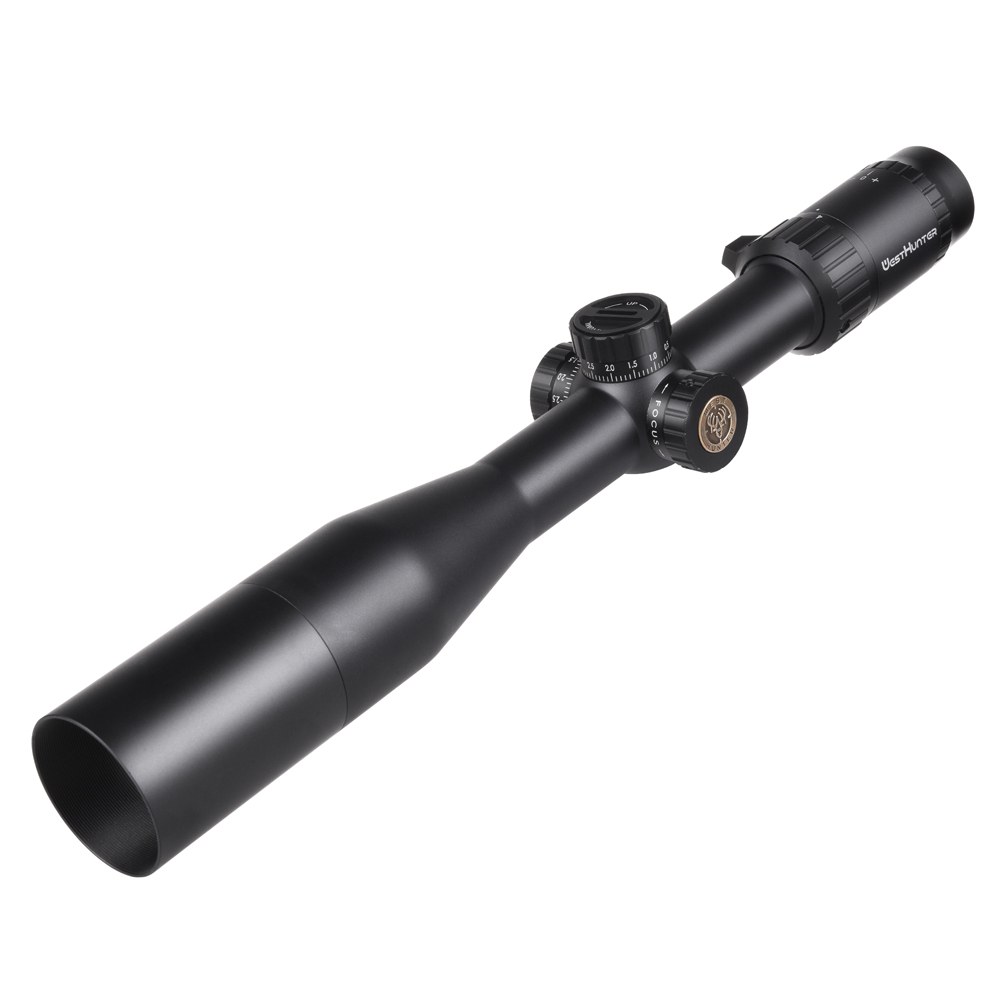

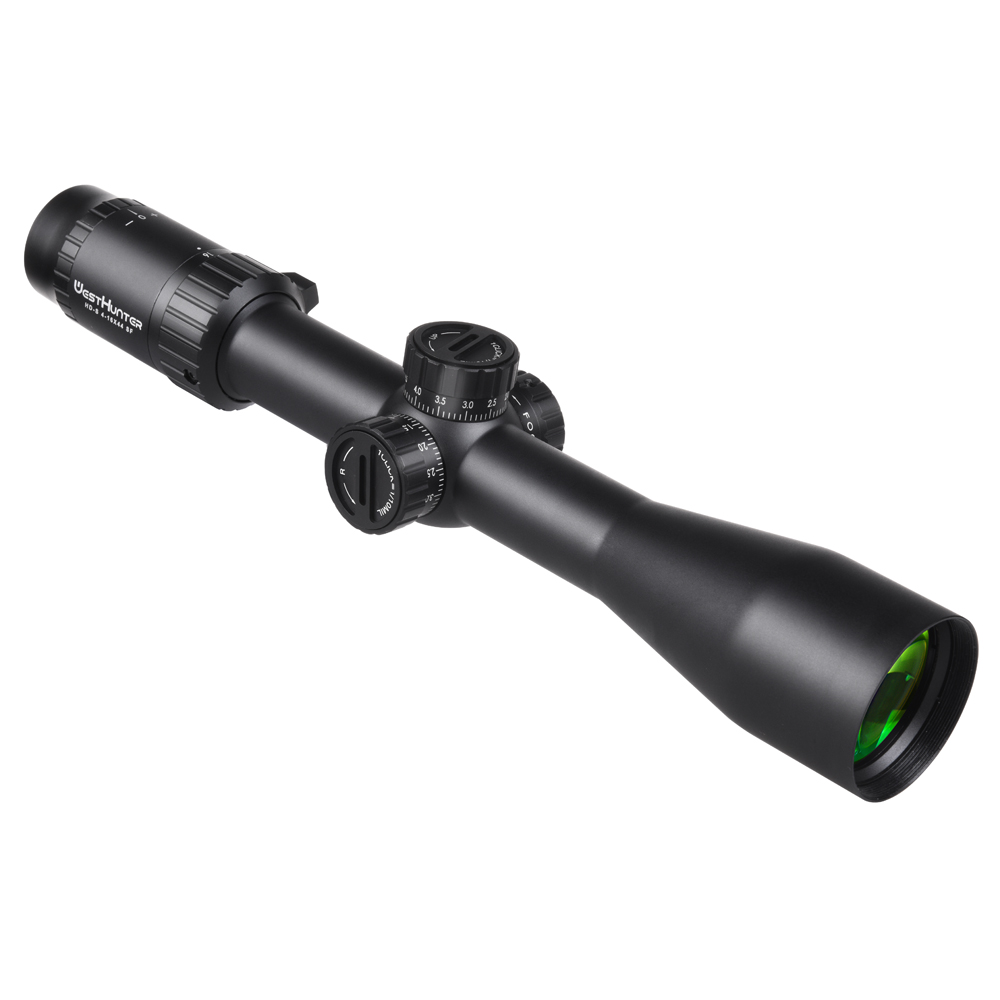

WESTHUNTER HD-S 4-16X44 SF
WS-MDS | MIL DOT | 30MM TUBE
HDS41644
Second Focal Plane,Mil Dot,Reset Turrets
4x optical zoom offered in second focal plane (SFP) with mil dot reticle options.Anti-reflective, fully multi-coated lenses provide bright and clear views for the user.A zero reset feature keeps zeroing simple and quick.
send e-mail
dealer@westhunteroptics.com
leave massage
Feature
Specification
Reticle
Accessories
Length:
31.8cm
Weight:
0.575kg
Objective diameter:
44
Diopter range:
+/- 2
Exit Pupil Distance (mm):
96
Standard Klick value for E/W (MOA):
0.25
Total travel elevation (@ 100 yds):
≥ 45M0OA
Total travel windage (@ 100 yds):
≥ 45M0OA
Parallax Compensation:
15yds-∞
Fast focus eyepiece:
yes
Sealing gas used:
Nitrogen
Clear aperture min magnification (mm):
44
Clear aperture max magnification (mm):
44
Eff. exit pupil diameter @ min. magnification ± 3 %:
11.00
Eff. exit pupil diameter @ max. magnification ± 3 %:
2.75
Maximum resolution in Arc. Second (min. Magnification):
4
Maximum resolution in Arc. Second (max. Magnification):
4
Range of Function temperature (Unit can still be operated):
-25°C/+55°C
Storage temperature:
-40C to +85C
Range of Dioptric compensation +/- dpt:
2
Permissible backlash Dioptric Compensation:
<0.25dpt
objective field of view @ min magnification
(ft @100yds):
30.3
objective field of view @ max magnification (ft@100yds):
7.6
Change of impact point after change of magnification (MOA):
1
Straightening of the Reticle:
± 2 °
Coating:
FMC
Optical length at infinity and zero diopter (mm):
313
WH208
PARALLAX WHEEL
