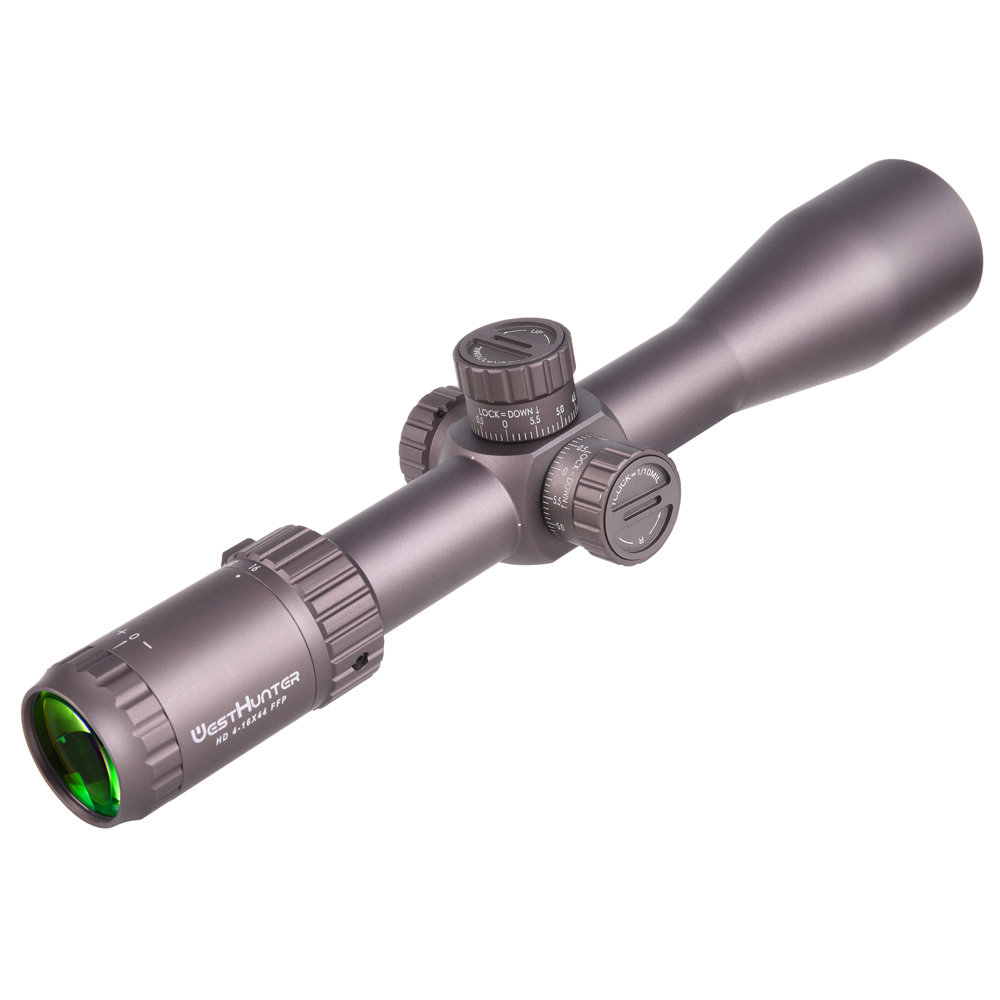

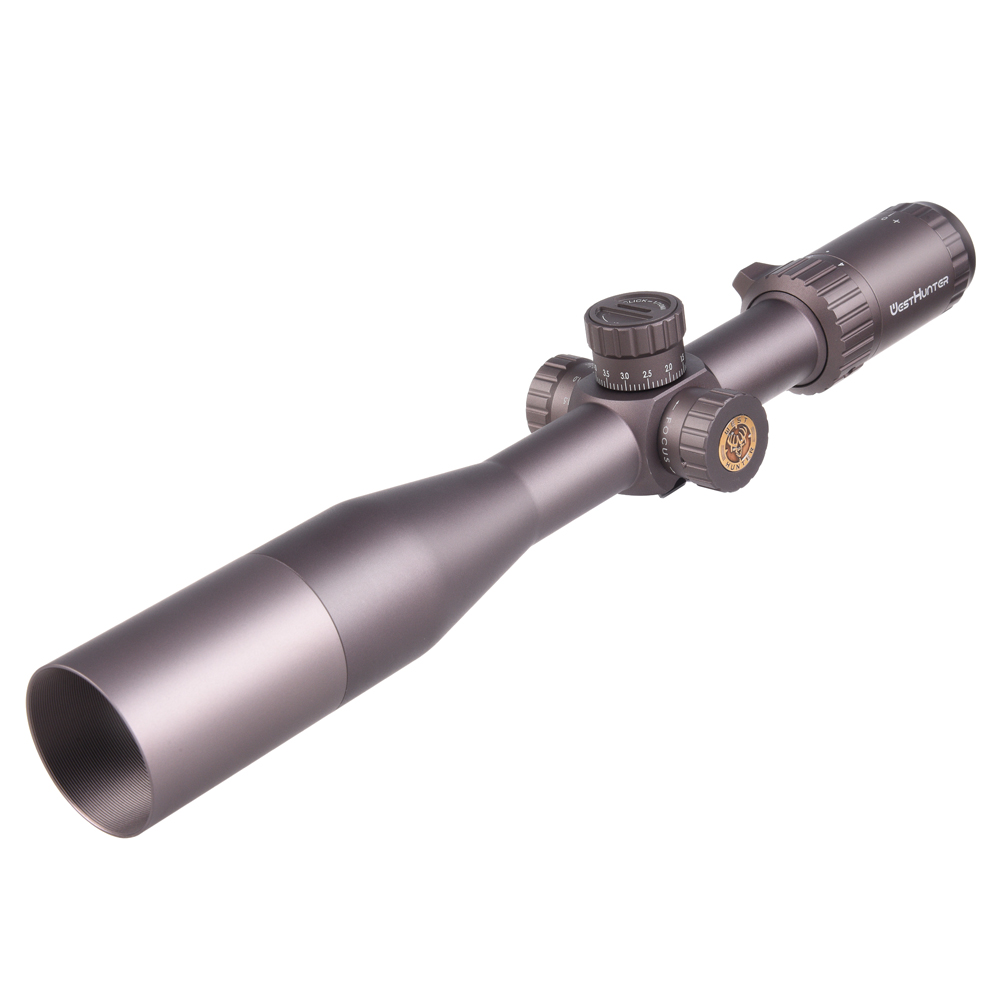

WESTHUNTER HD 4-16X44 FFP(Brown)

WD-TFN(MIL)RETICLE | BROWN COLOR | 30MM TUBE

First Focal Plane ,Lock Reset Turrets, Glass Etched

First Focal Plane (MIL) riflescope provides the features needed to improve your long distance shooting. The Zero System offers an easy to set, rock-solid return to zero after turret adjustments. Tactical locking turrets prevent accidental adjustments and provides fast, accurate adjustments.

send e-mail

dealer@westhunteroptics.com

leave massage

Feature
Specification

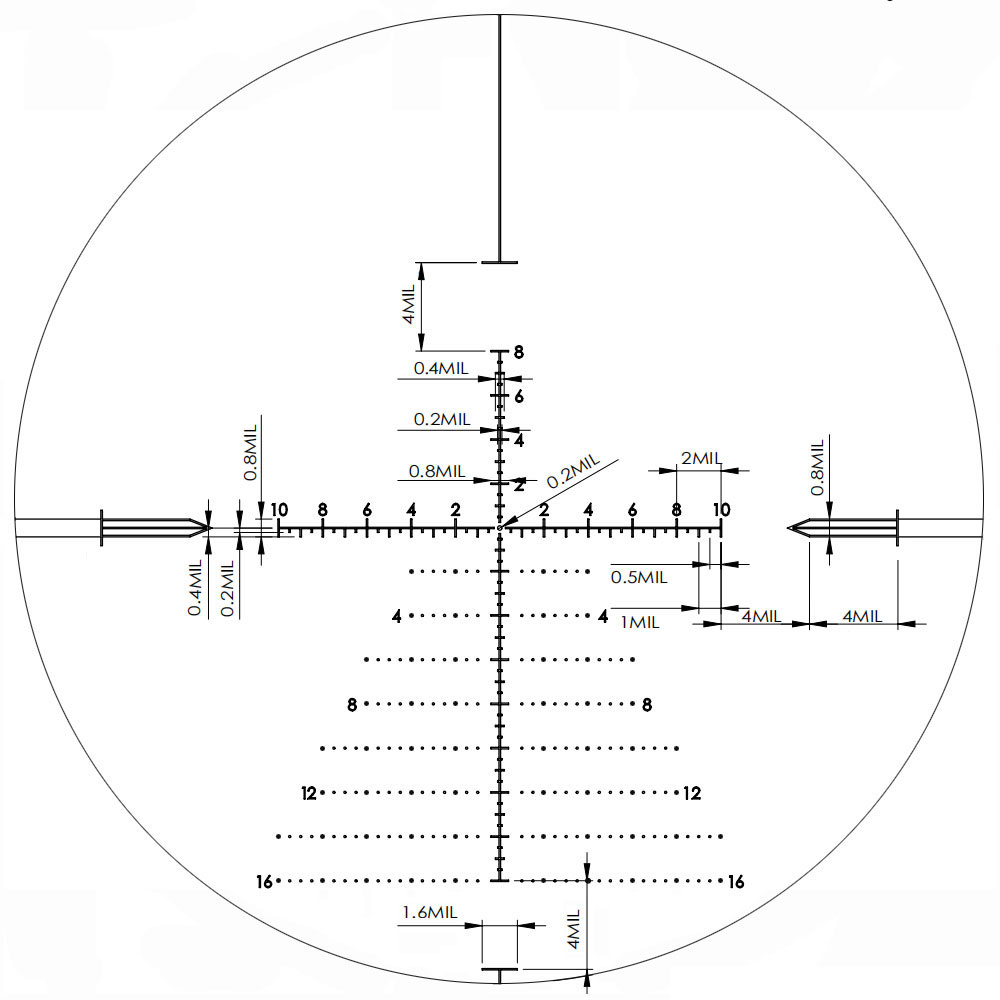

Reticle
Accessories

Magnification Low：	4
Magnification High：	16
Tube Diameter：	1.18in / 30mm
Objective diameter：	44
Diopter range +/-：	2
Exit Pupil Distance (mm)：	96
Click Value：	1/10MIL
Total travel elevation (@ 100 yds)：	≥ 45MOA
Total travel windage (@ 100 yds)：	≥ 45MOA
Parallax Compensation：	15yds-∞

Fast focus eyepiece：	yes
Sealing gas used：	Nitrogen
Clear aperture min magnification (mm)：	44
Clear aperture max magnification (mm)：	44
Eff. exit pupil diameter @ min. magnification ± 3 %：	11.00
Eff. exit pupil diameter @ max. magnification ± 3 %：	2.75
Maximum resolution in Arc. Second (min. Magnification)：	4
Maximum resolution in Arc. Second (max. Magnification)：	4
Range of Function temperature (Unit can still be operated)：	-25°C/+55°C
Storage temperature：	-40C to +85C

Range of Dioptric compensation +/- dpt：	2
Permissible backlash Dioptric Compensation：	<0.25dpt
objective field of view @ min magnification (ft @100yds)：	27.3
objective field of view @ max magnification (ft@100yds)：	6.8
Change of impact point after change of magnification (MOA)：	1
Straightening of the Reticle：	± 2 °
Coating：	FMC
Optical length at infinity and zero diopter (mm)：	313
Length：	12.52in / 31.8cm
Weight(g)：	20.46oz / 580g

Including items:Scope x1, One pair Mounts x1, Cleaning Cloth x1, Instruction x1, Flip-up Caps x1, Sunshade x1
- PARALLAX WHEEL
